ply파일은 point cloud 와 mesh를 저장할 수 있는 포맷이다. 여기선 point cloud를 시각화했다.
시각화하기전에 mesh가 포함된 파일인지 확인해봤는데, Point cloud만 존재함을 알 수 있었다.
"TriangleMesh with 98500 points and 0 triangles."
98500개의 points만 존재하고, mesh를 이루는 triangles는 전혀 없다.
# ply 포맷 내용 읽기
path = ' '# '/workspace/gaussian-splatting/output/5e870fa5-9/point_cloud/iteration_30000/point_cloud.ply'
with open(path, 'rb') as file:
for i in range(100):
ply_content = file.readline()
print(ply_content)ply파일 구조
- Header
- ascii 또는 binary_ll binary_little_endian 그리고 binary_big_endian
- Vertex List
- Face List (lists of other elements)
ply
format ascii 1.0 { ascii/binary, format version number }
comment made by Greg Turk { comments keyword specified, like all lines }
comment this file is a cube
element vertex 8 { define "vertex" element, 8 of them in file }
property float x { vertex contains float "x" coordinate }
property float y { y coordinate is also a vertex property }
property float z { z coordinate, too }
element face 6 { there are 6 "face" elements in the file }
property list uchar int vertex_index { "vertex_indices" is a list of ints }
end_header { delimits the end of the header }
0 0 0 { start of vertex list }
0 0 1
0 1 1
0 1 0
1 0 0
1 0 1
1 1 1
1 1 0
4 0 1 2 3 { start of face list }
4 7 6 5 4
4 0 4 5 1
4 1 5 6 2
4 2 6 7 3
4 3 7 4 0

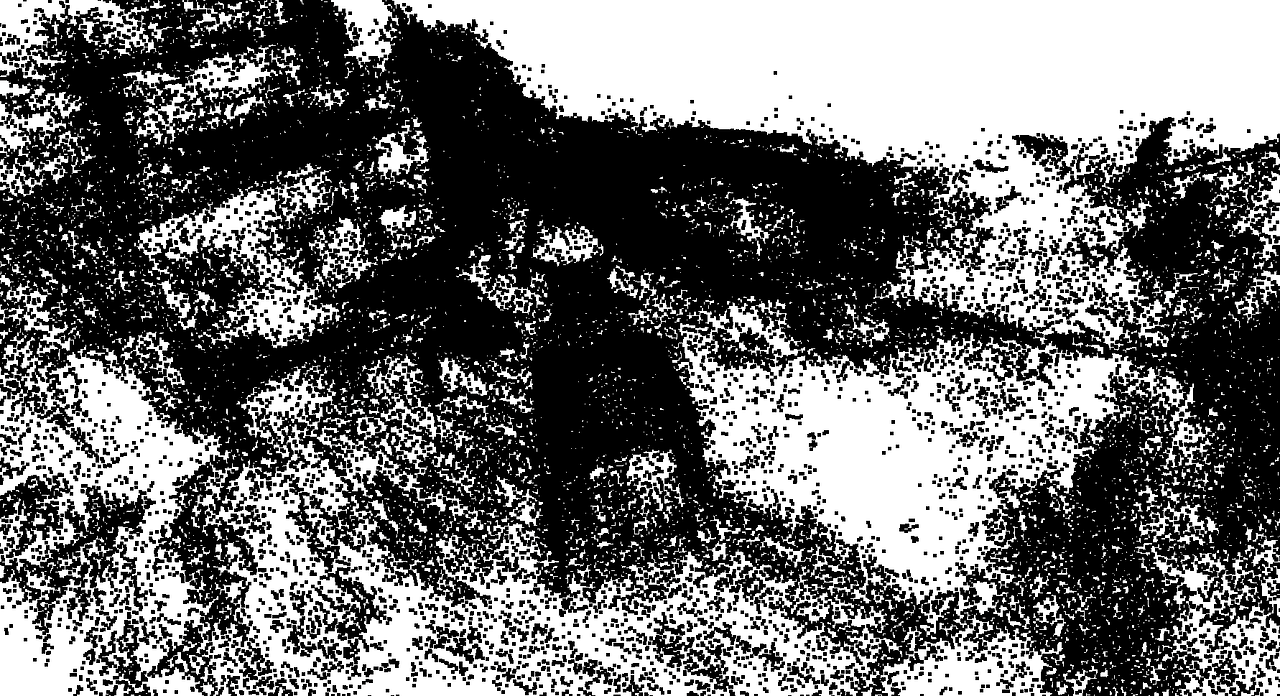

1. 원본 Point Cloud 시각화
13초 분량의 영상 촬영 -> ffmpeg로 프레임별 사진으로 변환 -> COLMAP을 통한 카메라 파라미터 및 point cloud 생성 -> 딥러닝 3D gaussian splatting 의 입력값으로 COLMAP의 결과물을 활용 -> 학습 및 추론으로 나온 결과물 중 ply 포맷의 3d point cloud 를 시각화했다.
import numpy as np
import open3d as o3d
if __name__ == "__main__":
print("Load a ply point cloud, print it, and render it")
input_path = '/workspace/gaussian-splatting/output/5e870fa5-9/point_cloud/iteration_30000/point_cloud.ply'
pcd = o3d.io.read_point_cloud(input_path)
print(pcd)
print(np.asarray(pcd.points))
o3d.visualization.draw_geometries([pcd])
# xhost +local:docker
PyVista라이브러리로 시각화
pcd = o3d.io.read_point_cloud(input_path)
pcd_np = np.asarray(pcd.points)
point_cloud = pv.PolyData(pcd_np)
# visualization with open3d
point_cloud.plot(eye_dome_lighting=True)
2. Down-Sampling
print("Downsampling the point cloud with a voxel of 0.05")
downpcd = pcd.voxel_down_sample(voxel_size=0.05)
print(np.asarray(downpcd))
o3d.visualization.draw_geometries([downpcd])
voxel_size의 단위는 m이고, 위 사진은 0.1m일 때의 point cloud(자율주행에서는 0.1, 0.2 많이 사용됨)
voxel_size = 0.05m 일 때
voxel 이라는 정육면체의 가상의 격자에 하나의 샘플만 들어가도록 샘플 수를 줄이는 것. voxel 사이즈를 정할 수 있고, 여기서는 0.05m이다. 참고
PointCloud with 98500 points 에서
PointCloud with 35469 points 수만큼 줄었다.
3. Vertex normal estimation
print("Recompute the normal of the downsampled point cloud")
downpcd.estimate_normals(search_param=o3d.geometry.KDTreeSearchParamHybrid(radius=0.1, max_nn=30))
o3d.visualization.draw_geometries([downpcd])

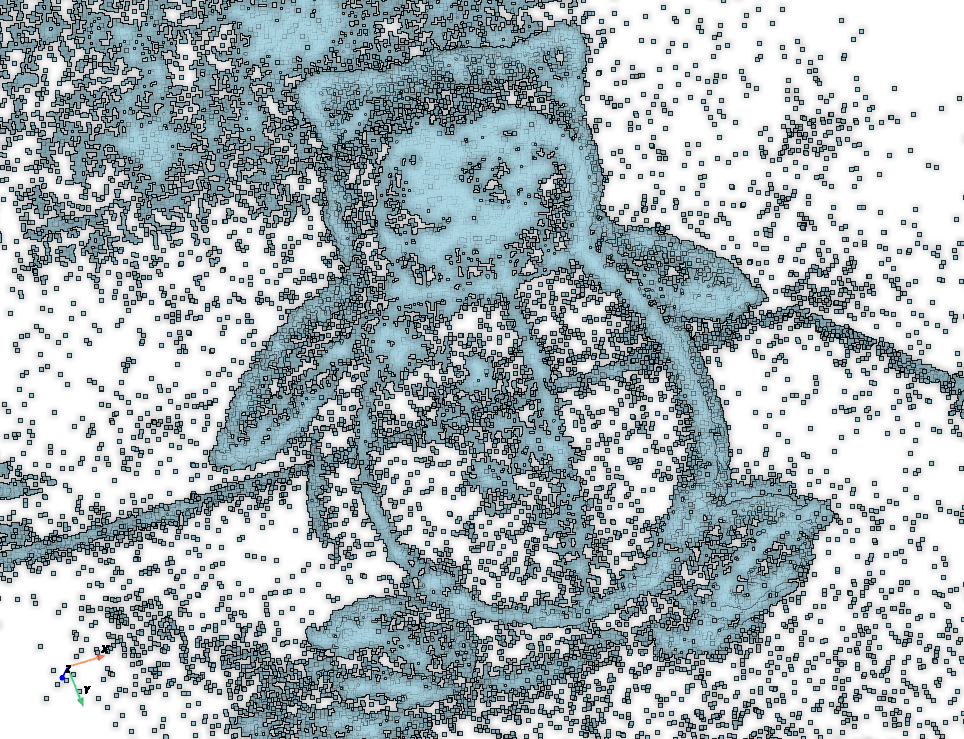

4. PCD to mesh (Alpha shapes)
point cloud를 mesh로 만드는 기법은 여러가지가 있다. Ball Pivoting, Poisson surface reconstruction 등, 그 중 Alpha shapes 방법을 사용해봤다.
alpha = 0.1
print(f"alpha={alpha:.3f}")
mesh = o3d.geometry.TriangleMesh.create_from_point_cloud_alpha_shape(downpcd, alpha)
mesh.compute_vertex_normals()
o3d.visualization.draw_geometries([mesh], mesh_show_back_face=True)

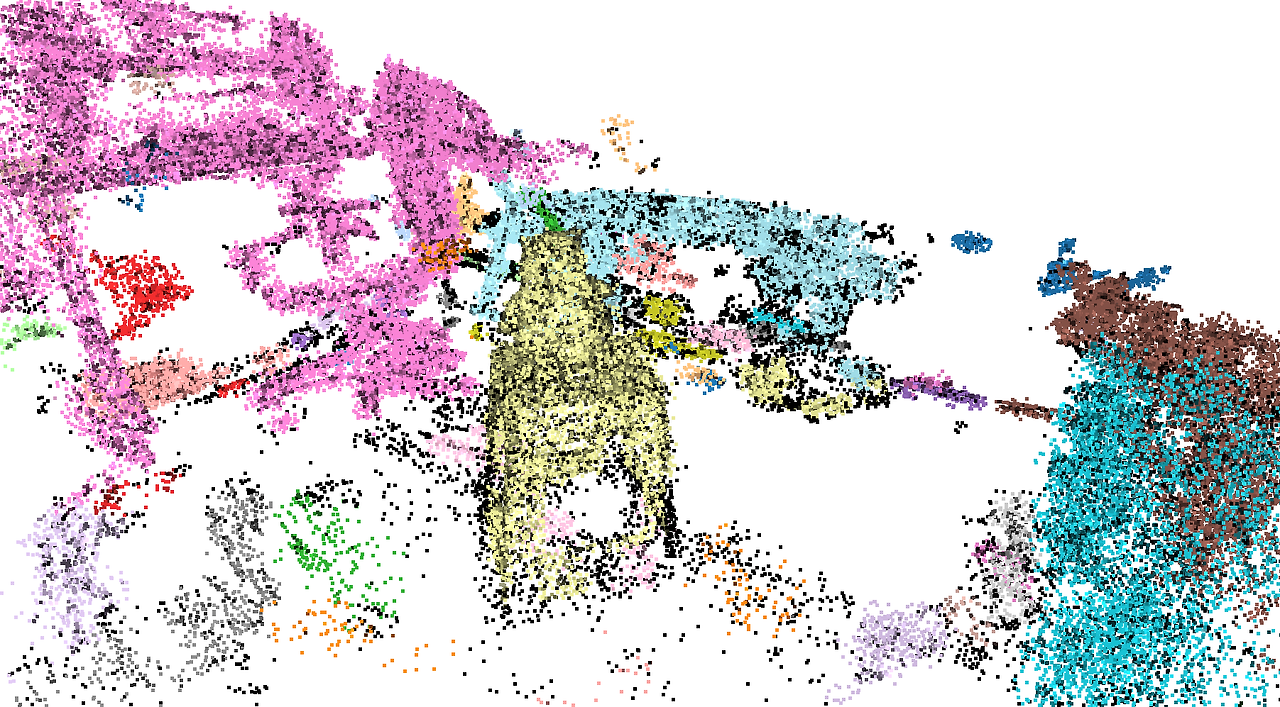

5. Point cloud clustering
import numpy as np
import open3d as o3d
import time
import matplotlib.pyplot as plt
import hdbscan
print(o3d.__version__)
input_path = '/workspace/gaussian-splatting/output/e025ca54-d/point_cloud/iteration_30000/point_cloud.ply'
pcd = o3d.io.read_point_cloud(input_path)
voxel_down_pcd = pcd.voxel_down_sample(voxel_size=0.1)
voxel_down_pcd.estimate_normals(search_param=o3d.geometry.KDTreeSearchParamHybrid(radius=0.1, max_nn=30))
def display_inlier_outlier(cloud, ind):
inlier_cloud = cloud.select_by_index(ind)
outlier_cloud = cloud.select_by_index(ind, invert=True)
print("Showing outliers (red) and inliers (gray): ")
outlier_cloud.paint_uniform_color([1, 0, 0])
inlier_cloud.paint_uniform_color([0, 1, 0])
o3d.visualization.draw_geometries([inlier_cloud, outlier_cloud],
zoom=0.3412,
front=[0.4257, -0.2125, -0.8795],
lookat=[2.6172, 2.0475, 1.532],
up=[-0.0694, -0.9768, 0.2024])
# print("Statistical oulier removal")
# cl, ind = voxel_down_pcd.remove_statistical_outlier(nb_neighbors=20,
# std_ratio=2.0)
# display_inlier_outlier(voxel_down_pcd, ind)
print("Radius oulier removal")
cl, ind = voxel_down_pcd.remove_radius_outlier(nb_points=40, radius=0.5)
# display_inlier_outlier(voxel_down_pcd, ind)
# Remove outliers
pcd2 = inlier_cloud = voxel_down_pcd.select_by_index(ind)
print(f"Number of points before removing outliers: {len(voxel_down_pcd.points)}")
print(f"Number of points after removing outliers: {len(inlier_cloud.points)}")
# Visualize the filtered point cloud
pcd2.paint_uniform_color([0.5, 0.5, 0.5])
# o3d.visualization.draw_geometries([inlier_cloud])
t1 = time.time()
plane_model, inliers = pcd2.segment_plane(distance_threshold=0.22, ransac_n=3, num_iterations=500)
inlier_cloud = pcd2.select_by_index(inliers)
outlier_cloud = pcd2.select_by_index(inliers, invert=True)
inlier_cloud.paint_uniform_color([0.5, 0.5, 0.5])
outlier_cloud.paint_uniform_color([1, 0, 0])
t2 = time.time()
print(f"Time to segment points using RANSAC {t2 - t1}")
o3d.visualization.draw_geometries([inlier_cloud, outlier_cloud])
plane_model, road_inliers = pcd2.segment_plane(distance_threshold=0.22, ransac_n=3, num_iterations=500)
pcd3 = pcd2.select_by_index(road_inliers, invert=True)
# o3d.visualization.draw_geometries([pcd3])
# CLUSTERING WITH HDBSCAN
t3 = time.time()
clusterer = hdbscan.HDBSCAN(min_cluster_size=30, gen_min_span_tree=True)
clusterer.fit(np.array(pcd3.points))
labels = clusterer.labels_
max_label = labels.max()
print(f'point cloud has {max_label + 1} clusters')
colors = plt.get_cmap("tab20")(labels / max_label if max_label > 0 else 1)
colors[labels < 0] = 0
pcd3.colors = o3d.utility.Vector3dVector(colors[:, :3])
t4 = time.time()
print(f'Time to cluster outliers using HDBSCAN {t4 - t3}')
o3d.visualization.draw_geometries([pcd3])

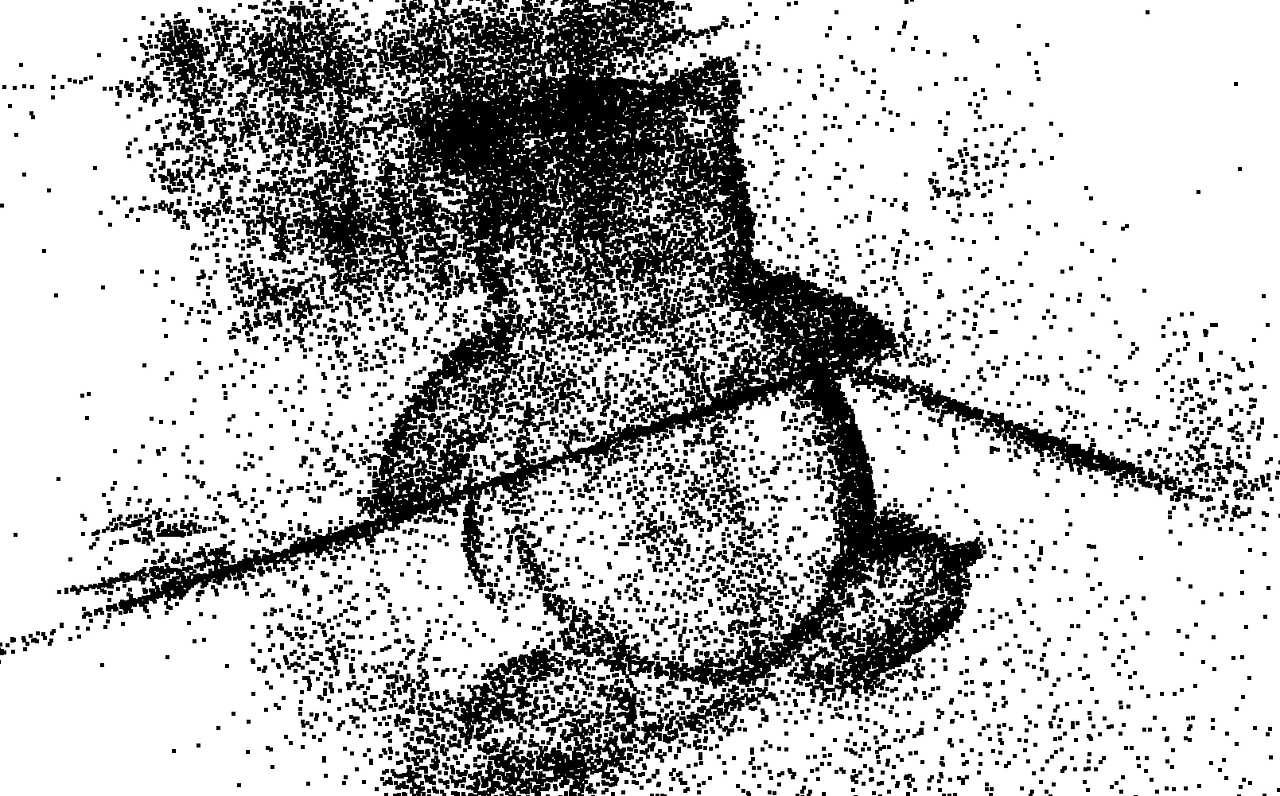

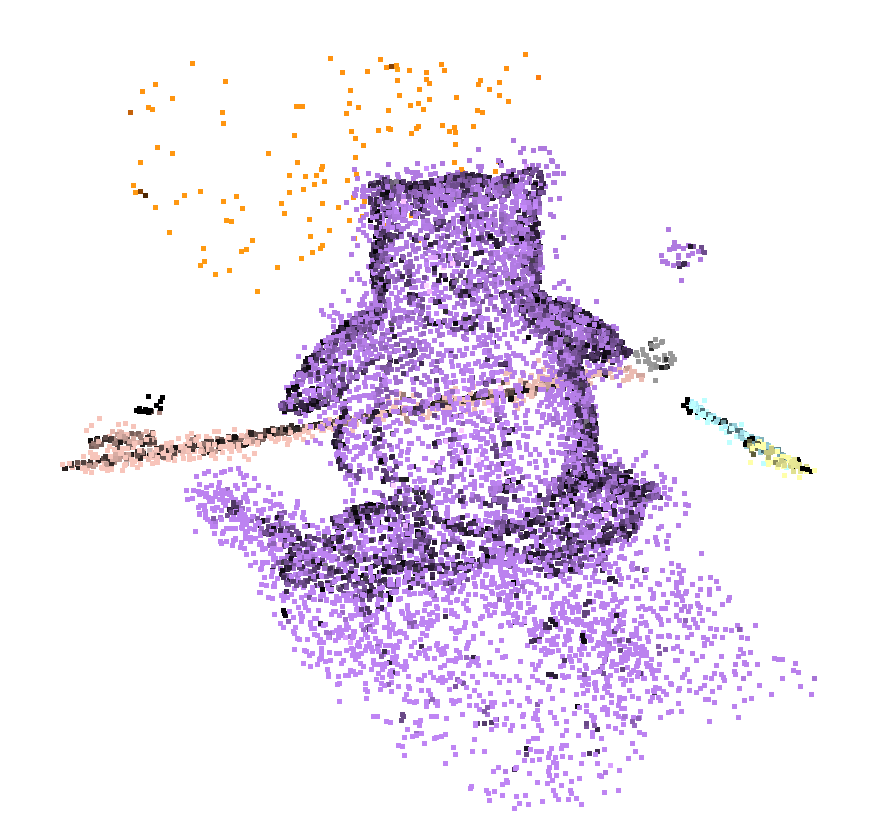

1~5의 과정을 다른 PCD에 적용해보았다. (아래 사진)
